| 5-Way Dividers | |
 Frequencies
from 10KHz to 500 MHz Lumped Element Designs Excellent Phase and Amplitude
Tracking
ECCN: EAR99 |
|
|
- Specifications are subject to change
without notice - Click on the product model number for Specifications-Sheet in PDF - Click on "  "
to see the actual response curves (subject to availability) |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
Low Frequency
Wide Band 5-Way Dividers |
||||||||||
| Model Number  |
Freq. Range (MHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
| 10 KHz - 10 MHz | ||||||||||
|
PD-0010-5S with SMA(f) PD-0010-5B with BNC(f) PD-0010-5N with N(f) |
0.01 - 10 | 0.5 | 25 | 1.30 | 1.30 | -/+0.08 | -/+0.5deg | 3 W | 10 W | Fig.21 |
| 10 - 500 MHz | ||||||||||
|

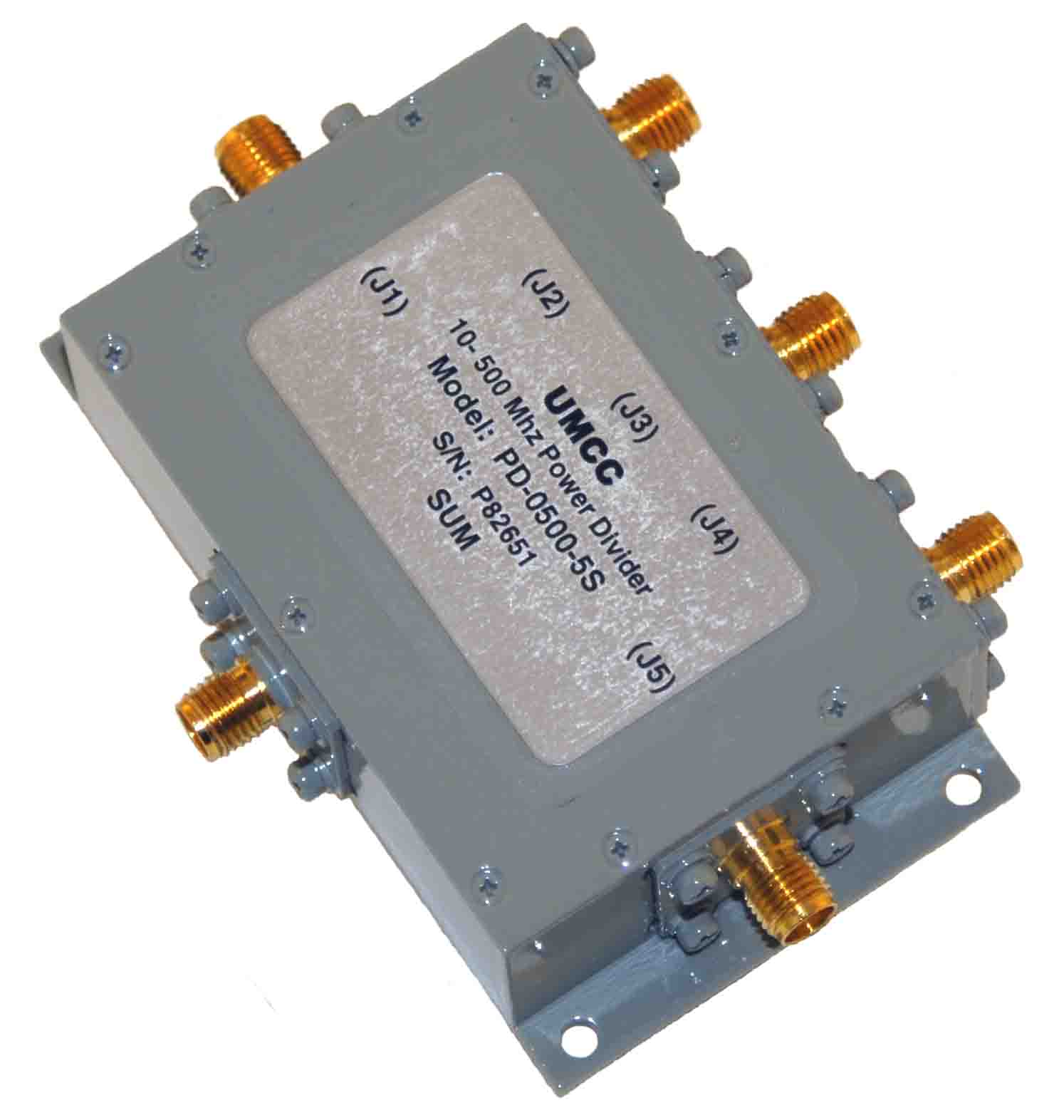

PD-0500-5S with SMA(f) PD-0500-5B with BNC(f) PD-0500-5N with N(f) |
10 - 250 | 0.8 | 20 | 1.60 | 1.50 | -/+0.15 | -/+4deg | 2 W | 8 W | Fig.21 |
| 250-500 | 1.4 | -/+0.35 | -/+7deg | |||||||
|
1) Loss due to division is 6.99dB 2) Power at SUM port |
||||||||||
| All Models: | |
 Impedance: |
50 Ω Nominal |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp.
Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
|
