| 9-Way Dividers | |
 Narrow Bands to Multi-Octave Bands Microstrip & Stripline
Construction Excellent Phase and Amplitude
Tracking Small & Slim Outline Packages
ECCN: EAR99(Other frequency bands are available, consult factory) |
|
|
- Specifications are
subject to change without notice - Click on the product model number for Specifications-Sheet in PDF - Click on "  "
to see the actual response curves (subject to availability) |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|

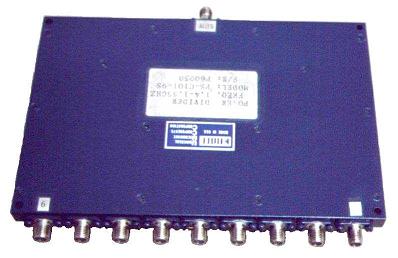

Wide-Band 9-Way Divider 2 - 8 GHz |
||||||||||
| Model Number  |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PS-L000-9S |
2 - 8 | 2.5 | 17 | 1.60 | 1.40 | -/+0.75 | -/+7deg | 1 W | 10 W | Fig.3 |
1) Loss due to division is 9.54dB 2) Power at SUM port |
||||||||||
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Connectors: |
SMA (f) |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp.
Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
|
