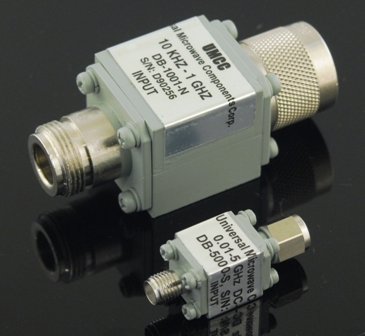

- DC-Blocks |
|
Frequencies from 10KHz to 18GHz |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
|
|||
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
|
 |
|
| (Inner Conductor) |
Other connector options are available (click on the model number to see the Option-Table) |
|
Model Number  |
Frequency Range |
Insertion Loss (dB) Max |
VSWR Max |
RF Power Max |
Blocked Voltage Max |
Connector Input |
Connector Output |
Outline Drawing |
|
DB-1000-N |
10 KHz
- 1000 MHz |
0.2 | 1.20 : 1 | 25 W | 50 V | N (F) | N (M) |
Fig.1 "N" Conn. |
|
DB-1001-N |
10 KHz
- 1000 MHz |
0.2 | 1.20 : 1 | 25 W | 100 V | N (F) | N (M) | |
|
DB-2000-N |
10 KHz
- 2000 MHz |
0.3 | 1.25 : 1 | 25 W | 50 V | N (F) | N (M) | |
|
DB-3000-N |
100 KHz
- 3000 MHz |
0.55 | 1.25 : 1 | 25 W | 50 V | N (F) | N (M) | |
| DB-1200-N |
300 KHz
- 1200 MHz |
0.1 | 1.15 : 1 | 50 W | 50 V | N (F) | N (M) | |
|
DB-1800-N |
200 - 1800 MHz | 0.15 | 1.2 : 1 | 500 W | 500 V | N (F) | N (M) | |
|
DB-1000-S |
10 KHz
- 1000 MHz |
0.2 | 1.2 : 1 | 15 W | 50 V | SMA (F) | SMA (M) |
Fig.2 "SMA" Conn. |
|
DB-1200-S |
300 KHz
- 1200 MHz |
0.1 | 1.15 : 1 | 50 W | 50 V | SMA (F) | SMA (M) | |
|
DB-3000-S |
100 KHz
- 3000 MHz |
0.55 | 1.20 : 1 | 15 W | 50 V | SMA (F) | SMA (M) | |
|
DB-5000-S |
10 - 20 MHz | 0.25 | 1.50 : 1 | 15 W | 50 V | SMA (F) | SMA (M) | |
| 20 MHz - 5 GHz | 1.25 : 1 | |||||||
|
DB-M000-S |
0.1 - 16 GHz | 0.5 | 1.25 : 1 | 15 W | 50 V | SMA (F) | SMA (M) | |
|
DB-T000-S |
1 - 18 GHz | 0.5 | 1.35 : 1 | 15 W | 50 V | SMA (F) | SMA (M) |
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Environmental Ratings: | ||
|
Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
|
Humidity: |
Mil-STD-202F, Method 103B Condition B | |
|
Shock: |
Mil-STD-202F, Method 213B Condition B | |
|
Vibration: |
Mil-STD-202F, Method 204D Condition B | |
|
Altitude: |
Mil-STD-202F, Method 105C Condition B | |
|
Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
 |
