Filters High-Pass |
|
Frequencies from 10KHz to 20GHz |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number |
|
||
|
Model Number |
Passband |
Passband Loss (Max) |
VSWR Max |
Rejection Band |
Avg. Power Max |
Connector Input |
Connector Output |
S-Parameter Data Download |
|

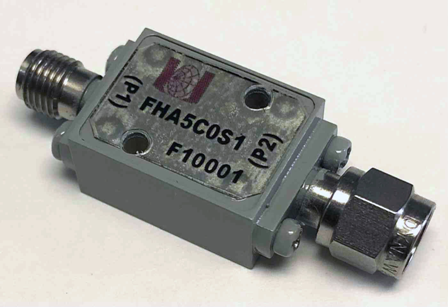

FH-A5C0-S1 {5-Section Chebychev Design} { Switch-Transient Filtering (VF) Application } |
0.25 - 14 GHz | 1.1 dB | 1.4 : 1 |
DC-80 mHz @ >30dB DC-50 mHz @ >50dB |
10 W | SMA (F) | SMA (M) | FH-A5C0-S1.S2P |
|
FH-A7C0-S1 {7-Section Chebychev Design} { Switch-Transient Filtering (VF) Application } |
0.15 - 20 GHz | 1.8 dB | 1.45 : 1 |
DC-70 mHz @ >30dB DC-50 mHz @ >50dB DC-30 mHz @ >80dB |
10 W | SMA (F) | SMA (M) | FH-A7C0-S1.S2P |
|
FH-A7CU-S1 {7-Section Chebychev Design} { Switch-Transient Filtering (VF) Application } |
0.65 - 20 GHz | 1.1 dB | 1.45 : 1 |
DC-310 mHz @ >30dB DC-230 mHz @ >50dB DC-170 mHz @ >70dB |
10 W | SMA (F) | SMA (M) | FH-A7CU-S1.S2P |
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Environmental Ratings: | ||
|
Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
|
Humidity: |
Mil-STD-202F, Method 103B Condition B | |
|
Shock: |
Mil-STD-202F, Method 213B Condition B | |
|
Vibration: |
Mil-STD-202F, Method 204D Condition B | |
|
Altitude: |
Mil-STD-202F, Method 105C Condition B | |
|
Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
|
