| High Power SP1T Switches | |||
|
|
Common Specifications | ||
|
|
Available Options | ||
|
> Specifications are subject to change
without notice > for Specifications-Sheet in PDF, click on the product model number > to see the actual response curves, click on "  " (subject to availability) |
|||
|
Sales/Technical Contact Email: Sales@UMCC111.com |
|||
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
Isolation (dB) Min |
VSWR Max |
Rise/Fall Time Max |
On/Off Time Max |
Power Handling, Max |
Supply Voltage |
Outline Drawing |
|
| cw / avg | peak | |||||||||
|
SR-0600-1S (Reflective)
|
0.1 - 0.6 | 0.5 | 70 | 1.35:1 | 600 ns | 800 ns | 40W (Note 2) |
250W (Note 3) |
+5(-/+0.25)V / 100mA -15(-/+0.5)V / 100mA |
Fig.1 |
|
SR-1050-1S
(Reflective)
|
0.15 - 1.05 | 0.5 | 70 | 1.35:1 | 600 ns | 800 ns | 40W (Note 2) |
250W (Note 3) |
+5(-/+0.25)V / 100mA -15(-/+0.5)V / 100mA |
Fig.1 |
|
SR-A40H-1S (Reflective)
|
0.04 - 2 | 0.8 | 40 | 1.3:1 | 3.8 μs | 4 μs |
4W (Note 1) |
40W (10μS,PW) |
+5(-/+0.25)V / 60mA -5(-/+0.25)V / 50mA |
Fig.2 |
| 2 - 4 | 1.0 | 35 | ||||||||
|
SR-A41H-1S (Absorptive)
|
0.04 - 2 | 1.0 | 50 | 1.3:1 | 3.8 μs | 4 μs |
4W (Note 1) |
40W (10μS,PW) |
+5(-/+0.25)V / 60mA -5(-/+0.25)V / 50mA |
Fig.2 |
| 2 - 4 | 1.5 | 40 | ||||||||
|
SR-M00B-1S (Reflective)
|
3.5 - 14.5 | 1.3 | 50 | 1.35:1 | 200 ns | 250 ns | 10W (Note 1) |
100W (Note 3) |
+5(-/+0.25)V / 90mA -15(-/+0.5)V / 40mA |
Fig.2 |
|
SR-P00H-1S (Reflective)
|
3 - 20 | 2.3 | 85 | 1.5:1 | 90 ns | 120 ns | 5W (Note 1) |
50W (Note 3) |
+5(-/+0.25)V / 90mA -15(-/+0.5)V / 40mA |
Fig.2 |
|
1) Hot Switching 2) Cold Switching 3) 1μS Pulse Width Max |
||||||||||
| All Models: | ||
Impedance: |
50 Ω Nominal | |
|
Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source) | |
|
Control Logic: |
1-Control / Floating-High | |
| Logic "0" for path "ON" ( 0 to +0.8V) | ||
| Logic "1" for path "OFF" (+2.2 to +5.0V) | ||
|
Connectors: |
||
| - RF Input / Output | SMA (female) | |
| - Supply / Control | Solder Pins | |
| Environmental Ratings: | ||
|
Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
|
RF Connectors |
Control Impedance |
||
| B1) J1 Port with SMA(M) | D1) 50 Ω, Internally Terminated | ||
| B2) All Ports with SMA(M) | |||
| B3) J2 Port with SMA(M) |
Control Function |
||
| F1) Inverted Logic, (Logic "1" = For RF Path "ON") | |||
|
|
|
|
|

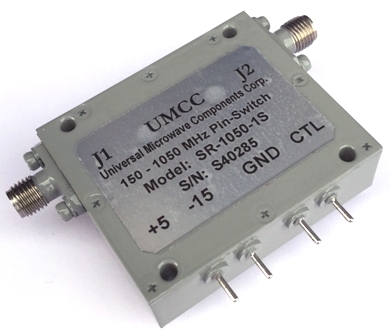

.jpg)
