UMCC

Pin Diode SP3T Switches / Phase Matched
Frequencies from 100MHz to 20GHz
Absorptive or Reflective Type
All with High Speed TTL Driver
Reverse Voltage Protection
Available with variety of options

"Specifications are subject to change without notice"



RF Circuit / Reflective SP3T



RF Circuit / Absorptive SP3T





  Common Specifications

  Available Options


Click on  "" to see the actual response curves (subject to availability).

Broadband SP3T Switches (Reflective / Absorptive)
Frequencies from 200MHz to 12.4GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
cw/avg peak
0.2 - 4 GHz
SW-DA00-3S
(Reflective)
0.2 - 4 1.7 65 1.5:1 25 ns 60 ns +30dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
SW-DA10-3S
(Absorptive)
0.2 - 4 1.7 70 1.5:1 25 ns 60 ns +27dbm
(+30dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
2 - 12.4 GHz
SW-L030-3S
(Reflective)
2 - 6 2.0 60 1.6:1 25 ns 50 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
6 - 12.4 2.2 50
SW-L010-3S
(Absorptive)
2 - 6 2.0 65 1.6:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
6 - 12.4 2.2 55
1 - 12.4 GHz
SW-K030-3S
(Reflective)
1 - 6 2.1 60 1.6:1 25 ns 50 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
6 - 12.4 2.3 50
SW-K010-3S
(Absorptive)
1 - 6 2.1 65 1.6:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
6 - 12.4 2.3 55
0.5 - 12.4 GHz
SW-J030-3S
(Reflective)
0.5 - 6 2.1 60 1.7:1 35 ns 60 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
6 - 12.4 2.5 50
SW-J010-3S
(Absorptive)
0.5 - 6 2.1 65 1.7:1 35 ns 60 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
6 - 12.4 2.5 55

Broadband SP3T Switches (Reflective / Absorptive)
Frequencies from 100MHz to 20GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
cw/avg peak
2 - 18 GHz
SW-S040-3S
(Reflective)
Economy Class
2 - 10 2.2 65 1.8:1 25 ns 50 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
10 - 18 2.7 55

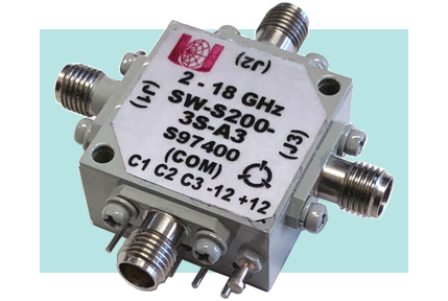

SW-S200-3S
(Reflective)
Low Loss
Response Curves in PDF
2 - 10 1.6 70 1.7:1 10 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 90mA
-12(±0.5)V / 60mA
10 - 18 2.0 60
SW-S000-3S
(Reflective)
High Isolation
2 - 10 1.9 80 1.7:1 10 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 2.4 70
SW-S010-3S
(Absorptive)
Economy Class
2 - 10 2.3 70 1.8:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
10 - 18 2.8 60
SW-S070-3S
(Absorptive)
High Isolation
2 - 10 2.5 90 2:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
5W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 3.3 80
1 - 18 GHz
SW-T040-3S
(Reflective)
Economy Class
1 - 10 2.3 65 1.8:1 25 ns 50 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
10 - 18 2.9 55
SW-T200-3S
(Reflective)
Low Loss
1 - 10 1.8 70 1.7:1 10 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 90mA
-12(±0.5)V / 60mA
10 - 18 2.4 60
SW-T000-3S
(Reflective)
High Isolation
1 - 10 2.0 80 1.8:1 10 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 2.9 70
SW-T010-3S
(Absorptive)
Economy Class
1 - 10 2.4 70 1.8:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
10 - 18 3.2 60
SW-T070-3S
(Absorptive)
High Isolation
1 - 10 2.7 90 2:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
5W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 3.6 80
0.5 - 18 GHz
SW-U040-3S
(Reflective)
Economy Class
0.5 - 10 2.6 65 1.8:1 30 ns 60 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
10 - 18 3.1 55
SW-U200-3S
(Reflective)
Low Loss
Response Curves in PDF
0.5 - 10 2.0 70 1.8:1 15 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 90mA
-12(±0.5)V / 60mA
10 - 18 2.5 60
SW-U000-3S
(Reflective)
High Isolation
0.5 - 10 2.2 80 1.9:1 15 ns 50 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 3.2 70
SW-U010-3S
(Absorptive)
Economy Class
0.5 - 10 2.6 70 1.8:1 30 ns 60 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
10 - 18 3.6 60
SW-U070-3S
(Absorptive)
High Isolation
0.5 - 10 3.0 90 2:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
5W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 3.8 80
0.1 - 18 GHz
SW-V040-3S
(Reflective)
Economy Class
0.1 - 0.5 2.8 65 1.9:1 35 ns 120 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
0.5 - 10 2.5
10 - 18 3.2 55
SW-V200-3S
(Reflective)
Low Loss
Response Curves in PDF
0.1 - 10 2.0 70 1.8:1 25 ns 120 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 90mA
-12(±0.5)V / 60mA
10 - 18 2.6 60
SW-V000-3S
(Reflective)
High Isolation
 0.1 - 10 2.3 80 1.9:1 25 ns 120 ns +30dbm 10W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 3.3 70
SW-V010-3S
(Absorptive)
Economy Class
0.1 - 0.5 3.3 70 2:1 35 ns 120 ns +24dbm
(+27dbm  @
 Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
0.5 - 10 2.7
10 - 18 3.7 60
SW-V070-3S
(Absorptive)
High Isolation
0.1 - 10 3.2 90 2:1 25 ns 120 ns +24dbm
(+27dbm  @
Com Port)
5W
(1µS,PW)
+5(±0.25)V / 120mA
-12(±0.5)V / 60mA
10 - 18 4.0 80
2 - 20 GHz
SW-P040-3S
(Reflective)

Economy Class
2 - 10 2.3 65 1.9:1 25 ns 50 ns +27dbm 8W
(1µS,PW)
+5(±0.25)V / 60mA
-12(±0.5)V / 60mA
Fig.2
10 - 18 2.8 55
18 - 20 3.1
SW-P010-3S
(Absorptive)
2 - 10 2.3 70 1.9:1 25 ns 50 ns +24dbm
(+27dbm  @
Com Port)
8W
(1µS,PW)
+5(±0.25)V / 110mA
-12(±0.5)V / 60mA
10 - 18 2.8 60
18 - 20 3.1



All Models:
   Impedance: 50 Ω
   Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
   Control Logic: 3-Controls / Flouting-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
   Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55°C to +95°C
- Storage -60°C to +110°C
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Video Suppression Filters
   A1)  +5(±0.25)V / -5(±0.25)V   G1) VF @ Common Port<> 0.25dB additional Loss
  A2)  +5(±0.25)V / -15(±0.5)V   G2) VF @ J1 -  J3 Ports<> 0.25dB additional Loss
  A3)  +12(±0.5)V / -12(±0.5)V G3) VF @ All Ports<> 0.5dB additional Loss
  A4)  +15(±0.5)V / -15(±0.5)V
    Other Possible Options (Consult Factory)
  RF Connectors - Higher Isolation
  B1) J1 - J3 Ports with SMA(M)   - Switch Without Driver
B2) All SMA(M) - Higher Power
B3) COM Port with SMA(M)   - Etc.

 Control Function
  F1) Inverted Logic, ("1" = Path "ON")
