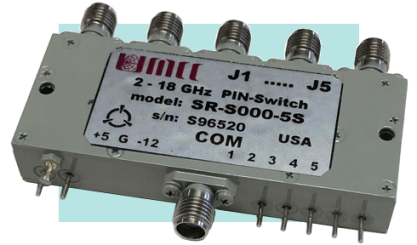

Pin Diode SP5T Switches
 Frequencies from 10MHz to 20GHz
All with High Speed TTL Driver
Available with variety of options
Small Compact Packages
"Specifications are subject to change without notice"



RF Circuit / Reflective SP5T



RF Circuit / Absorptive SP5T





  Common Specifications

  Available Options


Click on  "" to see the actual response curves (subject to availability).

Broadband SP5T Switches (Reflective / Absorptive)
Frequencies from 10MHz to 12.4GHz

Model No.
 		Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
cw/avg peak
0.01 - 3 GHz
SR-3000-5S
(Reflective) 		0.01 - 1 1.6 60 1.5:1 350 ns 900 ns +30dbm 5W
(5µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 90mA		 Fig.1
1 - 3 2.1 55
SR-3010-5S
(Absorptive) 		0.01 - 1 1.6 65 1.5:1 350 ns 900 ns +27dbm
(+30dbm @
Com Port)		 5W
(5µS,PW)		 +5(±0.25)V / 170mA
-12(±0.5)V / 90mA
1 - 3 2.1 60
0.03 - 6 GHz
SR-6000-5S
(Reflective) 		0.03 - 1 2.7 70 1.6:1 250 ns 750 ns +30dbm 5W
(5µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 90mA		 Fig.1
1 - 3 65
3 - 6 60
SR-6010-5S
(Absorptive) 		0.03 - 1 2.7 75 1.6:1 250 ns 750 ns +27dbm
(+30dbm @
Com Port)		 5W
(5µS,PW)		 +5(±0.25)V / 170mA
-12(±0.5)V / 90mA
1 - 3 70
3 - 6 65
0.2 - 4 GHz
SR-DA00-5S
(Reflective)		 0.2 - 4 2.0 65 1.5:1 40 ns 80 ns +30dbm 8W
(1µS,PW)		 +5(±0.25)V / 60mA
-12(±0.5)V / 70mA		 Fig.1
SR-DA10-5S
(Absorptive)		 0.2 - 4 2.0 70 1.5:1 40 ns 80 ns +27dbm
(+30dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 140mA
-12(±0.5)V / 70mA
2 - 12.4 GHz
SR-L030-5S
(Reflective) 		2 - 4 2.3 60 1.7:1 15 ns 45 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
 -12(±0.5)V / 80mA		 Fig.1
4 - 8 2.3 55
8 - 12.4 2.3 50
SR-L010-5S
(Absorptive) 		2 - 4 2.3 65 1.7:1 15 ns 45 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.3 60
8 - 12.4 2.3 53
1 - 12.4 GHz
SR-K030-5S
(Reflective) 		1 - 4 2.4 60 1.7:1 15 ns 50 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
4 - 8 2.4 55
8 - 12.4 2.6 50
SR-K010-5S
(Absorptive) 		1 - 4 2.4 65 1.7:1 15 ns 50 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.4 60
8 - 12.4 2.6 53
0.5 - 12.4 GHz
SR-J030-5S
(Reflective) 		0.5 - 4 2.4 60 1.8:1 20 ns 50 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
4 - 8 2.4 55
8 - 12.4 2.7 50
SR-J010-5S
(Absorptive) 		0.5 - 4 2.4 65 1.8:1 20 ns 50 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.4 60
8 - 12.4 2.7 53

Broadband SP5T Switches (Reflective / Absorptive)
Frequencies from 2 to 20GHz

Model No.
 		Frequency
(GHz)		 Insertion
Loss
(dB) Max		 Isolation
(dB) Min		 VSWR
Max		 Rise/Fall
Time
Max		 On/Off
Time
Max		 Power
Handling, Max		 Supply
Voltage		 Outline
Drawing
cw/avg peak
2 - 18 GHz
SR-S040-5S
(Reflective)
Economy Class		 2 - 4 2.3 75 1.8:1 15 ns 45 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
 -12(±0.5)V / 80mA		 Fig.1
4 - 8 2.4 70
8 - 12.4 2.9 60
12.4 - 18 3.3 55
SR-S000-5S
(Reflective)
 High Isolation		 2 - 8 2.0 80 1.8:1 10 ns 45 ns +30dbm 10W
(1µS,PW)		 +5(±0.25)V / 160mA
 -12(±0.5)V / 80mA
8 - 12.4 2.6 75
12.4 - 18 3.4 70
SR-S010-5S
(Absorptive)
Economy Class		 2 - 4 2.3 80 1.9:1 15 ns 45 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
 -12(±0.5)V / 80mA
4 - 8 2.4 75
8 - 12.4 2.9 65
12.4 - 18 3.3 60
SR-S070-5S
(Absorptive)
 High Isolation		 2 - 4 2.3 80 2:1 15 ns 45 ns +24dbm
 (+27dbm @
Com Port)		 5W
(1µS,PW)		 +5(±0.25)V / 160mA
 -12(±0.5)V / 80mA
4 - 12.4 2.9 80
12.4 - 18 3.8 75
1 - 18 GHz
SR-T040-5S
(Reflective)
Economy Class		 1 - 4 2.4 75 1.8:1 15 ns 50 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
4 - 8 2.4 70
8 - 12.4 2.9 60
12.4 - 18 3.5 55
SR-T000-5S
(Reflective)
 High Isolation		 1 - 2 2.1 75 1.8:1 10 ns 50 ns +30dbm 10W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
2 - 8  2.3 80
8 - 12.4 2.9 75
12.4 - 18 3.7 70
SR-T010-5S
(Absorptive)
Economy Class		 1 - 4 2.4 80 1.9:1 15 ns 50 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.4 75
8 - 12.4 2.9 65
12.4 - 18 3.5 60
SR-T070-5S
(Absorptive)
 High Isolation		 1 - 4 2.6 80 2:1 15 ns 50 ns +24dbm
(+27dbm @
Com Port)		 5W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 12. 4 3.3 80
12.4 - 18 4.0 75
0.5 - 18 GHz
SR-U040-5S
(Reflective)
Economy Class		 0.5 - 4 2.6 75 1.9:1 20 ns 50 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
4 - 8 2.8 70
8 - 12.4 3.3 60
12.4 - 18 3.8 55
SR-U000-5S
(Reflective)
 High Isolation		 0.5 - 2 2.2 75 1.9:1 15 ns 50 ns +30dbm 10W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
2 - 8 2.4 80
8 - 12.4 3.1 75
12.4 - 18 3.8 70
SR-U010-5S
(Absorptive)
Economy Class		 0.5 - 4 2.6 80 2:1 20 ns 50 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.8 75
8 - 12.4 3.3 65
12.4 - 18 3.8 60
SR-U070-5S
(Absorptive)
 High Isolation		 0.5 - 4 2.6 80 2:1 15 ns 50 ns +24dbm
(+27dbm @
Com Port)		 5W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 12. 4 3.6 80
12.4 - 18 4.6 75
0.1 - 18 GHz
SR-V040-5S
(Reflective)
Economy Class		 0.1 - 0.5 3.2 75 2:1 35 ns 120 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
0.5 - 4 2.7 75
4 - 8 2.9 70
8 - 12.4 3.4 60
12.4 - 18 3.9 55
SR-V000-5S
(Reflective)
 High Isolation		 0.1 - 0.5 3.1 75 2:1 25 ns 120 ns +30dbm 10W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
0.5 - 2 2.3 80
2 - 8 2.5 80
8 - 12.4 3.3 75
12.4 - 18 4.1 70
SR-V010-5S
(Absorptive)
Economy Class
 Response Curves in PDF		 0.1 - 0.5 3.2 80 2:1 35 ns 120 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
0.5 - 4 2.7 80
4 - 8 2.9 75
8 - 12.4 3.4 65
12.4 - 18 3.9 60
SR-V070-5S
(Absorptive)
 High Isolation		 0.1 - 4 2.8 75 2.1:1 25 ns 120 ns +24dbm
(+27dbm @
Com Port)		 5W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
1 - 4 3.7 80
4 - 12. 4 4.2 80
12.4 - 18 4.8 75
2 - 20 GHz
SR-P040-5S
(Reflective)
Economy Class		 2 - 4 2.3 75 1.9:1 15 ns 45 ns +27dbm 8W
(1µS,PW)		 +5(±0.25)V / 70mA
-12(±0.5)V / 80mA		 Fig.1
4 - 8 2.4 70
8 - 12.4 2.9 60
12.4 - 18 3.3 55
18 - 20 3.7 50
SR-P010-5S
(Absorptive) 		2 - 4 2.3 80 2.0:1 15 ns 45 ns +24dbm
(+27dbm @
Com Port)		 8W
(1µS,PW)		 +5(±0.25)V / 160mA
-12(±0.5)V / 80mA
4 - 8 2.4 75
8 - 12.4 2.9 65
12.4 - 18 3.3 60
18 - 20 3.7 55



All Models:
 Impedance: 50 Ω
 Control Input Characteristic: Standard TTL, One Unit Load
 Control Logic: 5 Controls (Logic "0" for RF Path "ON")
 Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55°C to +95°C
- Storage -60°C to +110°C
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Control Function
   A1)  +5(±0.25)V / -5(±0.25)V   F1) Inverted Logic, ("1" = Path "ON")
  A2)  +5(±0.25)V / -15(±0.5)V   F2) Binary Coded Logic, (3 Controls)
  A3)  +12(±0.5)V / -12(±0.5)V
  A4)  +15(±0.5)V / -15(±0.5)V  Video Suppression Filters
    G1) VF @ Common Port <> 0.25dB additional Loss
  RF Connectors G2) VF @ J1 -  J5 Ports <> 0.25dB additional Loss
  B1) J1 - J5 SMA(M)   G3) VF @ All Ports <> 0.5dB additional Loss
B2) All SMA(M)
B3) Common SMA(M)
