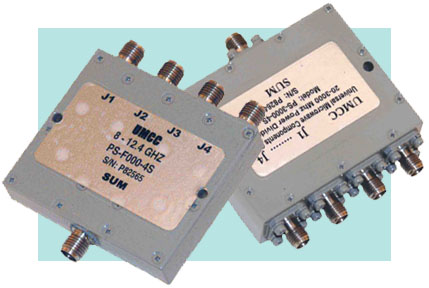

| 4-Way Dividers | |
 Frequencies
from DC to
20GHz Narrow Bands to Multi-Octave Bands Lumped
Element, Microstrip, or Stripline Constructions Excellent Phase and Amplitude
Tracking
ECCN: EAR99 |
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
| - Specifications are
subject to change without notice - Click on the product model number for Specifications-Sheet in PDF - Click on "  "
to see the actual response curves (subject to availability) |
|
Low Frequency
Wide Band 4-Way Dividers |
||||||||||
| Model Number  |
Freq. Range (MHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
| 10 KHz - 30 MHz | ||||||||||
|
PS-003A-4S with SMA(f) PS-003A-4B with BNC(f) PS-003A-4N with N(f) |
0.01 - 30 | 0.9 | 21 | 1.35 | 1.35 | -/+0.05 | -/+0.25deg | 4 W | 10 W | Fig.21 |
| 500 KHz - 100 MHz | ||||||||||
|
{High
Isolation} PD-0100-4S with SMA(f) PD-0100-4B with BNC(f) PD-0100-4N with N(f) |
0.5 - 100 | 0.8 | 30 | 1.35 | 1.35 | -/+0.05 | -/+1deg | 2 W | 8 W | Fig.22 |
| 1 - 500 MHz | ||||||||||
|
PD-0500-4S with SMA(f) PD-0500-4B (3) with BNC(f) PD-0500-4N with N(f) |
1 - 500 | 1.5 | 20 | 1.4 | 1.35 | -/+0.1 | -/+1deg | 2 W | 8 W | Fig.22 |
| 10 - 1000 MHz | ||||||||||
|
PD-1000-4S with SMA(f) PD-1000-4B (3) with BNC(f) PD-1000-4N with N(f) |
10 - 1000 | 1.2 | 24 | 1.35 | 1.35 | -/+0.05 | -/+1deg | 4 W | 10 W | Fig.22 |
| 20 - 3000 MHz | ||||||||||
|
PS-3000-4S with SMA(f) PS-3000-4N with N(f) |
20 - 2000 | 1.5 | 18 | 1.50 | 1.50 (4) |
-/+0.1 | -/+1deg | 2 W | 8 W | Fig.23 |
| 2000- 3000 | 2.2 | -/+0.2 | -/+1.5deg | |||||||
1) Loss due to division is 6.02dB 2) Power at SUM port 3) Also available with 75 ohm BNC(f) / ( Consult factory ) 4) 1.65:1 over 20-30 MHz |
||||||||||
|
Narrow-Band 4-Way Dividers |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PS-C000-4S |
0.9 - 2.2 | 0.4 | 22 | 1.25 | 1.25 | -/+0.1 | -/+1.5deg | 2 W | 20 W | Fig.3 |
|
PS-D000-4S |
1.9 - 4.5 | 0.5 | 22 | 1.30 | 1.30 | -/+0.1 | -/+1.5deg | 2 W | 20 W | Fig.8 |
| PS-3800-4S | 2.8 - 5.2 | 0.5 | 22 | 1.25 | 1.25 | -/+0.1 | -/+1.5deg | 1 W | 10 W | Fig.7 |
|
PS-3800-4N All N(f) |
3.4 - 4.2 | 0.5 | 22 | 1.30 | 1.30 | -/+0.1 | -/+1.5deg | 1 W | 10 W | Fig.13 |
|
PD-E000-4S |
4 - 8 | 0.8 | 20 | 1.30 | 1.30 | -/+0.1 | -/+2deg | 1 W | 10 W | Fig.5 |
|
PD-F000-4S |
8 - 12.4 | 0.8 | 18 | 1.45 | 1.40 | -/+0.1 | -/+2.5deg | 1 W | 10 W | Fig.10 |
|
PD-P000-4S |
10 - 20 | 1.2 | 17 | 1.45 | 1.45 | -/+0.15 | -/+2.5deg | 1 W | 10 W | Fig.10 |
1) Loss due to division is 6.02dB 2) Power at Sum Port |
||||||||||
|
Wide-Band 4-Way Dividers 800 MHz - 18 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PS-J101-4N High Power All N(f) |
0.8 - 2.1 | 1.0 | 21 | 1.40 | 1.35 | -/+0.1 | -/+1deg | 5 W | 50 W | Fig.12 |
|
PS-K000-4S |
0.85 - 4 | 1.0 | 20 | 1.30 | 1.30 | -/+0.15 | -/+2deg | 1 W | 10 W | Fig.9 |
 PD-LS00-4S Slimline Pkg. |
1.9 - 8.5 | 0.7 | 21 | 1.35 | 1.35 | -/+0.2 | -/+4deg | 1 W | 10 W | Fig.15 |
|
PD-M000-4S |
4 - 12.4 | 1.0 | 20 | 1.55 | 1.55 | -/+0.25 | -/+4deg | 1 W | 10 W | Fig.5 |
|
PD-N000-4S |
6 - 18 | 1.5 | 17 | 1.60 | 1.60 | -/+0.25 | -/+4deg | 1 W | 10 W | Fig.11 |
|
1) Loss due to division is 6.02dB 2) Power at Sum Port |
||||||||||
|
Multi-Octave-Band 4-Way
Dividers 1 - 18 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PD-RS00-4S Slimline Pkg. |
1 - 12.4 | 1.8 | 19 | 1.55 | 1.35 | -/+0.2 | -/+4deg | 1 W | 10 W | Fig.16 |
|
PD-S000-4S |
2 - 18 | 2.2 | 17 | 1.60 | 1.55 | -/+0.25 | -/+5deg | 1 W | 10 W | Fig.14 |
|
1) Loss due to division is 6.02dB 2) Power at Sum Port |
||||||||||
|
Resistive 4-Way Divider DC - 12 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Nominal |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PD-Z000-4S |
DC - 12 | 1.2 | 12 | 1.40 | 1.40 | -/+0.2 | -/+3deg | 0.5 W | 1 W | Fig.6 |
|
1) Loss due to division is 12.04 dB, %75 power is dissipated internally 2) Power at Sum Port |
||||||||||
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Connectors: |
SMA(f) , ("unless otherwise specifies") |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp.
Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
|
