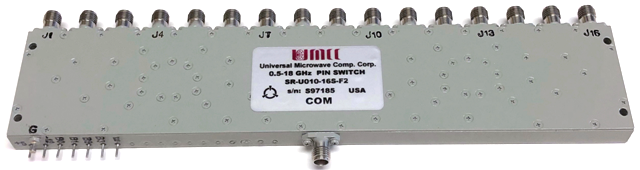

SP16T Switches
Frequencies from 20MHz to 18GHz
All with High Speed TTL Driver
Available with variety of options
Small Compact Packages

ECCN: EAR99

  Sales/Technical Contact Email:  Sales@UMCC111.com


RF Circuit / Reflective SP16T



RF Circuit / Absorptive SP16T





  Common Specifications

  Available Options
    > Specifications are subject to change without notice
> for Specifications-Sheet in PDF, click on  the product model number

> to see the actual response curves, click on  ""  (subject to availability)

Broadband SP16T Switches (Reflective / Absorptive)
Frequencies from 20MHz to 18GHz

Model No.
Frequency
(GHz)
Insertion
Loss
(dB) Max
Isolation
(Arm-to-Arm)
(dB) Min
VSWR
Max
Rise/Fall
Time
Max
On/Off
Time
Max
Power
Handling, Max
Supply
Voltage
Outline
Drawing
Cw / Avg Peak
20 MHz - 6 GHz
SR-B300-16S
(Reflective)
Response Curves in PDF
0.02 - 6 4.5 65 1.85:1 300 ns 400 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
SR-B310-16S
(Absorptive)
Response Curves in PDF
0.02 - 6 4.5 70 1.85:1 300 ns 400 ns +27dbm
(+23dBm Max
Below 100MHz)
5W
(5μS, PW)
+5(-/+0.25)V / 430mA
-12(-/+0.5)V / 150mA
0.2 - 4 GHz
SR-DA3W-16S
(Reflective)
0.2 - 4 3.3 70 1.8:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
SR-DA1W-16S
(Absorptive)
0.2 - 4 3.3 75 1.8:1 250 ns 350 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 430mA
-12(-/+0.5)V / 150mA
2 - 14 GHz
(Fast Switching)
SR-L440-16S
(Reflective)
2 - 12.4 4.7 55 1.9:1 30 ns 80 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
12.4 - 14 50
SR-L410-16S
(Absorptive)
2 - 12.4 4.7 60 1.9:1 30 ns 80 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 430mA
-12(-/+0.5)V / 150mA
12.4 - 14 55
0.5 - 14 GHz
(Fast Switching)
SR-J440-16S
(Reflective)
0.5 - 12.4 4.9 55 1.9:1 40 ns 90 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
12.4 - 14 50
SR-J410-16S
(Absorptive)
0.5 - 12.4 4.9 60 1.9:1 40 ns 90 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 430mA
-12(-/+0.5)V / 150mA
12.4 - 14 55
 1 - 15 GHz
SR-K03W-16S
(Reflective)
1 - 6 5.2 65 1.9:1 350 ns 400 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
 6 - 12.4 60
12.4 - 15 55
SR-K01W-16S
(Absorptive)
1 - 6 5.2 75 1.9:1 250 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 430mA
-12(-/+0.5)V / 150mA
 6 - 12.4 65
12.4 - 15 60
2 - 18 GHz
 SR-S04W-16S
(Reflective)
2 - 8 5.8 70 1.9:1 250 ns 350 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
8 - 18 65
SR-S01W-16S
(Absorptive)
2 - 8 5.8 75 1.9:1 200 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 400mA
-12(-/+0.5)V / 150mA
8 - 18 70
0.5 - 18 GHz
SR-U04W-16S
(Reflective)
0.5 - 8 6.0 70 1.95:1 250 ns 350 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 200mA
-12(-/+0.5)V / 150mA
Fig.1
8 - 18 65
SR-U01W-16S
(Absorptive)
Response Curves in PDF
0.5 - 8 6.0 75 1.95:1 200 ns 300 ns +27dbm 5W
(1μS, PW)
+5(-/+0.25)V / 400mA
-12(-/+0.5)V / 150mA
8 - 18 70




All Models:
 Impedance: 50 Ω Nominal
 Control Input Characteristic: TTL, One Unit Load (1.6mA Sink / 40μA Source)
 Control Logic: 16-Controls / Floating-High
Logic "0" for path "ON" ( 0 to +0.8V)
Logic "1" for path "OFF" (+2.2 to +5.0V)
 Connectors:
- RF Input / Output SMA (female)
- Supply Solder Pins
- Control Solder Pins

Environmental Ratings:
 Temperature:
- Operating -55 degC to +95 degC
- Storage -60 degC to +110 degC
 Humidity: Mil-STD-202F, Method 103B Condition B
 Shock: Mil-STD-202F, Method 213B Condition B
 Vibration: Mil-STD-202F, Method 204D Condition B
 Altitude: Mil-STD-202F, Method 105C Condition B
 Temp. Cycle: Mil-STD-202F, Method 107D Condition B

Available Options:
1) units with combination of the following options may require some specification tradeoffs from the standard
2) Some options may not be available on all models
 Supply Voltages  Control Function
   A1)*  +5 ( -/+ 0.25 )V  /  -5 ( -/+ 0.25 )V   F1) Inverted Logic, ("1" = Path "ON")
  A2)  +5 ( -/+ 0.25 )V  /  -15 ( -/+ 0.5 )V   F2) Binary Coded Logic, (4 Controls + Enable)
> Outline for Switch with Option "F2"   Fig. 3
*Additional Switching Delay (On/Off Time)
 RF Connectors  Video Suppression Filters *
  B1) J1 - J16 SMA(M)   G1) VF @ Common Port<> 0.25dB additional Loss
  B2) All SMA(M) G2) VF @ J1 -  J16 Ports <> 0.25dB additional Loss
  B3) COM Port with SMA(M)   G3) VF @ All Ports <> 0.5dB additional Loss
  * Voltage spikes during switching transition can reach as high as few volts with bandwidths reaching up to near 1GHz. These Spikes/Video do appear on the switch RF port; this may  effect certain systems that are sensitive to these undesirable voltage spikes. UMCC offers internal 3-section high-pass filtering (G options)  to reduce these voltage spikes to a reasonable level of 50~400 mV Pk-Pk depending on the switch types. For more effective transient voltage reduction, an external higher order filtering is highly recommended. UMCC has developed series of miniature wideband filters for this very purpose. To see the available selection, please visit the following page:  Filter-HighPass
