Filter-HighPass

UMCC
Diplexers ( & Bias-T Diplexers )
Frequencies from 10KHz to 20GHz

Sales/Technical Contact Email: Sales@UMCC111.com



	> Specifications are subject to change without notice > for Specifications-Sheet in PDF, click on the product model number

Model#	Ultimate Passband	Crossover Frequency	Low-Band Frequency	High-Band Frequency	Crossover Loss (Max)	Shape Factor	VSWR (Max)	Connectors	S-Parameter Data Download

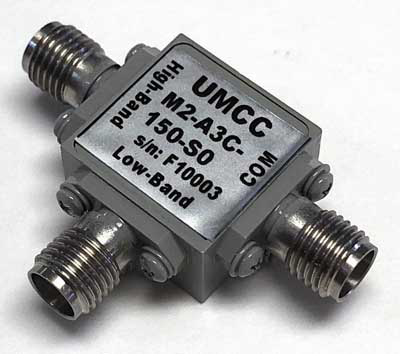

M2-A3C-150-S0 {3-Section Contiguous Chebychev Design}	DC - 18 GHz	150 MHz (-/+ 5% Max)	DC-100 MHz (1dB BW)	0.23-18 GHz (1dB BW)	4.5 dB	(1dB / 20dB) 3.2 (Low-Band) 3.0 (High-Band)	1.4:1	All SMA(f)
M2-B7C-860-SB {7-Section Contiguous Chebychev Design}	DC - 5 GHz	860 MHz (-/+ 5% Max)	DC-800 MHz (1dB BW)	0.9-5 GHz (1dB BW)	4.5 dB	(1dB / 30dB) 1.3 (Low-Band) 1.3 (High-Band)	1.45:1	COM & High-Band with SMA(f) <> Low-Band with BNC(f)	M2-B7C-860-SB.S2P


Bias-T Diplexers {Designed for high DC bias current feed with matched impedance for data modulation/demodulation}			Other connector options are available (click on the model number to see the Option-Table)
Model#	Frequency Range	Insertion Loss (Max)	VSWR (Max)	Isolation Bias to RF (Min)	AVG RF Power (Max)	Bias Voltage (Max)	Bias Frequency Band (50 ohm Imp.)	Bias Current (Max)	Bias DC Resistance (Max)	Outline Drawing
BD-H250-BB with BNC(f) BD-H250-SB *with SMA(f)* BD-H250-NB *with N(f)*	250 - 2500 MHz	0.5 dB	1.5 : 1	55 dB	100 W	150 V	DC - 40 MHz	3.5 A	0.1 Ohm	Fig.1 RF& (RF+DC) with: BNC (female) -or- SMA (female) -or- N (female)

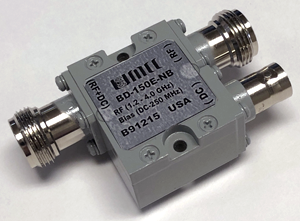

BD-150E-SB with SMA(f) BD-150E-NB *with N(f)*	1.2 - 4.0 GHz	0.3 dB	1.3: 1	30 dB	40W	100 V	DC - 250 MHz	3 A	0.1 Ohm	Fig.1 RF& (RF+DC) with: SMA (female) -or- N (female)
BD-6375-MS	500 - 6500 MHz	1.2 dB	1.45 : 1	30 dB	10W	50 V	DC - 75 Mhz	300 mA	1.0 Ohm	Fig 2
