High
Power SP2T Switches - Custom made units are available (Consult Factory) "Specifications are subject to change without notice" |
|
Click
on " |
Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
VSWR Max |
Isolation (dB) Min |
Rise/Fall Time Max |
On/Off Time Max |
Supply Voltage |
Power Handling, Max |
Outline Drawing |
|
| cw/avg | peak | |||||||||
| SR-0400-2S (Reflective)  |
0.05 - 0.4 | 0.8 | 1.2:1 | 60 | 750ns | 1µs |
+5(±0.25)V / 125mA -15(±0.5)V / 125mA |
30W (Note 1) |
150W (Note 3) |
Fig.1 |
| SR-0600-2S (Reflective) |
0.15 - 0.8 | 0.3 | 1.15:1 | 55 | 750ns | 1µs |
+5(±0.25)V / 125mA -15(±0.5)V / 125mA |
30W (Note 1) |
250W (Note 3) |
Fig.1 |
| SR-145H-2S (Reflective) |
1.2 - 1.7 | 0.6 | 1.3:1 | 70 | 500ns | 750ns |
+5(±0.25)V / 125mA -15(±0.5)V / 125mA |
40W (Note 1) |
250W (Note 3) |
Fig.5 |
|
SW-L00H-2S (Reflective) |
2 - 8 | 1.5 | 1.5:1 | 55 | 75ns | 150ns |
+5(±0.25)V
/ 125mA -12(±0.5)V / 125mA |
2W (Note 1) |
50W (Note 3) |
Fig.2 |

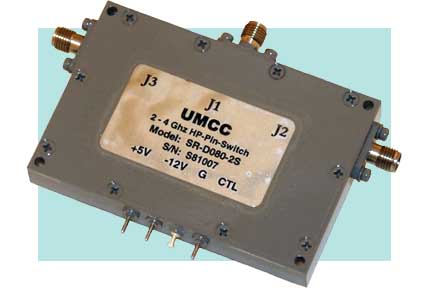

| SR-D080-2S (Reflective) |
2.2 - 3.8 | 0.6 | 1.35:1 | 65 | 500ns | 750ns |
+5(±0.25)V
/ 125mA -12(±0.5)V / 125mA |
40W (Note 1) |
250W (Note 3) |
Fig.3 |
| 2 - 4 | 0.8 | 1.6:1 | ||||||||
| SR-F000-2S (Reflective) |
8 - 12 | 1.5 | 1.5:1 | 50 | 25ns | 75ns |
+5(±0.25)V
/ 80mA -15(±0.5)V / 80mA |
5W (Note 1) |
50W (Note 3) |
Fig.4 |
| SR-F00B-2S (Reflective) |
8 - 10 | 1.5 | 1.5:1 | 50 | 100ns | 200ns |
+5(±0.25)V
/ 125mA -15(±0.5)V / 125mA |
20W (Note 1) |
100W (Note 3) |
Fig.4 |
|
1) Hot Switching ; 2) Cold Switching ; 3) 1µS Pulse Width Max |
||||||||||
| All Models: | ||
Impedance: |
50 W | |
|
Control Input Characteristic: |
TTL, One Unit Load (1.6mA Sink / 40μA Source) | |
|
Control Logic: |
Single Control (Logic "0" for J1 Path "ON", Logic "1" for J2 Path "ON") | |
|
Connectors: |
Single-Control /
Flouting-High Logic "0" for "J1" path "ON" ( 0 to +0.8V) Logic "1" for "J2" path "ON" (+2.2 to +5.0V) |
|
| - RF Input / Output | SMA (female) | |
| - Supply / Control | Solder Pins | |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55°C to +95°C | |
| - Storage | -60°C to +110°C | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp. Cycle: |
Mil-STD-202F, Method 107D Condition B | |
Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models |
|||
|
RF Connectors |
Control Impedance |
||
| B1) J1&J2 SMA(M) | D1) 50 W, Internally Terminated | ||
| B2) All SMA(M) | |||
| B3) Common SMA(M) |
Control Function |
||
| F1) Inverted Logic, (Logic "1" = For J1 Path "ON") | |||
|
|
|
|
|
