| 2-Way Dividers | |
 Frequencies
from DC to
20GHz Narrow Bands to Multi-Octave Bands Lumped
Element, Microstrip, or Stripline
Construction Excellent Phase and Amplitude
Tracking
ECCN: EAR99 |
|
|
|
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
| - Specifications are
subject to change without notice - Click on the product model number for Specifications-Sheet in PDF |
- Click
on " "
to see the actual response curves (subject to availability) |
|
Low Frequency
Wide Band 2-Way Dividers |
||||||||||
|
Model Number  |
Freq. Range (MHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
| 20 KHz - 20 MHz | ||||||||||
|
PD-0020-2S with SMA(f) PD-0020-2B with BNC(f) PD-0020-2N with N(f) |
0.02 - 2 | 0.3 | 40 | 1.20 | 1.20 | -/+0.05 | -/+0.1deg | 4 W | 15 W | Fig.22 |
| 2 - 5 | 30 | |||||||||
| 5 - 20 | 23 | |||||||||
| 10 KHz - 40 MHz | ||||||||||
|
PD-0040-2S with SMA(f) PD-0040-2B with BNC(f) PD-0040-2N with N(f) |
0.01 - 10 | 0.3 | 30 | 1.40 | 1.40 | -/+0.1 | -/+1deg | 2 W | 6 W | Fig.21 |
| 10 - 40 | 0.7 | 26 | ||||||||
| 500 KHz - 100 MHz | ||||||||||
|
PD-0100-2S with SMA(f) PD-0100-2B with BNC(f) PD-0100-2N with N(f) High Isolation |
0.5 - 20 | 0.3 | 40 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 2 W | 8 W | Fig.21 |
| 20 - 100 | 30 | |||||||||
| 1 - 500 MHz | ||||||||||
|
PD-0500-2S with SMA(f) PD-0500-2B with BNC(f) PD-0500-2N with N(f) (3) |
1 - 250 | 0.4 | 22 | 1.20 | 1.25 | -/+0.15 | -/+1deg | 2 W | 8 W | Fig.21 |
| 250 -500 | 1.0 | 20 | 1.40 | 1.50 | -/+0.2 | -/+2deg | ||||
| 10 - 1000 MHz | ||||||||||
|
PD-1000-2S with SMA(f) PD-1000-2B with BNC(f) PD-1000-2N with N(f) (3) |
10 - 1000 | 0.7 | 24 |
1.30
: 1 {1.5:1 Over 10-20MHz} |
-/+0.1 | -/+0.5deg | 2 W | 8 W | Fig.21 | |
| 20 - 3000 MHz | ||||||||||
|
PS-3000-2S with SMA(f) PS-3000-2N with N(f) |
20 - 1500 | 1.2 | 18 |
1.5
: 1 {1.65:1 Over 20-50MHz} |
-/+0.15 | -/+1deg | 2 W | 8 W | Fig.23 | |
| 1500- 3000 | 2.2 | -/+0.2 | -/+1.5deg | |||||||
|
1) Loss due to division is 3.01 dB 2) Power at SUM port 3) Also available with 75 ohm BNC(f) / ( Consult factory ) |
||||||||||
|
Narrow-Band 2-Way Dividers 400 MHz - 20 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PS-B000-2S |
0.4 - 1.1 | 0.3 | 25 | 1.20 | 1.20 | -/+0.05 | -/+0.25deg | 2 W | 20 W | Fig.9 |
|
PS-C000-2S |
0.8 - 2.2 | 0.4 | 22 | 1.25 | 1.25 | -/+0.07 | -/+1deg | 2 W | 20 W | Fig.2 |
|
PS-C000-2N All N(f) |
0.8 - 2.2 | 0.4 | 22 | 1.25 | 1.25 | -/+0.07 | -/+1deg | 2 W | 20 W | Fig.10 |
|
PS-CD00-2S |
1.5 - 3 | 0.3 | 22 | 1.20 | 1.20 | -/+0.1 | -/+1deg | 2 W | 20 W | Fig.2 |
|
PS-D000-2S |
1.7 - 4.1 | 0.3 | 22 | 1.20 | 1.20 | -/+0.1 | -/+0.5deg | 2 W | 20 W | Fig.5 |
|
PS-D000-2N All N(f) |
1.7 - 4.1 | 0.45 | 22 | 1.30 | 1.30 | -/+0.1 | -/+0.5deg | 2 W | 20 W | Fig.10 |
| PD-H000-2S | 3 - 6 | 0.4 | 22 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.14 |
|
PD-E000-2S |
4 - 8 | 0.4 | 22 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.14 |
 PD-YS00-2S Slimline Pkg. |
4.5 - 10.5 | 0.7 | 19 | 1.35 | 1.25 | -/+0.1 | -/+1.5deg | 1 W | 10 W | Fig.4 |
|
PD-Y000-2S |
4.5 - 10.5 | 0.7 | 19 | 1.35 | 1.25 | -/+0.1 | -/+1.5deg | 1 W | 10 W | Fig.11 |
|
PD-FS00-2S Slimline Pkg. |
8 - 12.4 | 0.5 | 20 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.4 |
|
PD-F000-2S |
8 - 12.4 | 0.6 | 20 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.11 |
|
PD-GS00-2S Slimline Pkg. |
12.4 - 18 | 0.8 | 20 | 1.35 | 1.35 | -/+0.2 | -/+3deg | 1 W | 10 W | Fig.4 |
|
PD-G000-2S |
12.4 - 18 | 0.8 | 20 | 1.35 | 1.35 | -/+0.2 | -/+3deg | 1 W | 10 W | Fig.11 |
|
PD-PS00-2S Slimline Pkg. |
10 - 20 | 1.0 | 16 | 1.50 | 1.40 | -/+0.2 | -/+3deg | 1 W | 10 W | Fig.4 |
|
PD-P000-2S |
10 - 20 | 1.0 | 16 | 1.50 | 1.40 | -/+0.2 | -/+3deg | 1 W | 10 W | Fig.11 |
1) Loss due to division is 3.01 dB 2) Power at Sum Port |
||||||||||
|
Wide-Band 2-Way Dividers 450 MHz - 18 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2)
cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
| PS-B600-2S | 0.45 - 2.4 | 0.6 | 20 | 1.35 | 1.35 | -/+0.1 | -/+1deg | 2 W | 20 W | Fig.9 |
|
PS-C102-2S |
0.55 - 2.05 | 0.7 | 18 | 1.50 | 1.25 | -/+0.1 | -/+2deg | 5 W | 50 W | Fig.12 |
|
PS-J000-2S |
0.5 - 2 | 0.5 | 25 | 1.25 | 1.25 | -/+0.1 | -/+0.5deg | 2 W | 20 W | Fig.1 |
|
PS-J102-2N All N(f) |
0.5 - 2 | 1.0 | 20 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 5 W | 50 W | Fig.13 |
|
PS-K000-2S |
0.85 - 4 | 0.4 | 23 | 1.30 | 1.30 | -/+0.1 | -/+0.5deg | 1 W | 10 W | Fig.7 |
|
PS-K000-2N All N(f) |
0.85 - 4 | 0.4 | 23 | 1.30 | 1.30 | -/+0.1 | -/+0.5deg | 1 W | 10 W | Fig.10 |
|
PS-L000-2S |
1.9 - 8.5 | 0.4 | 22 | 1.35 | 1.35 | -/+0.1 | -/+2deg | 1 W | 10 W | Fig.3 |
|
PD-HE00-2S |
3 - 8.5 | 0.5 | 20 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.14 |
|
PD-M000-2S |
4 - 12.4 | 0.7 | 18 | 1.45 | 1.45 | -/+0.15 | -/+2deg | 1 W | 10 W | Fig.14 |
|

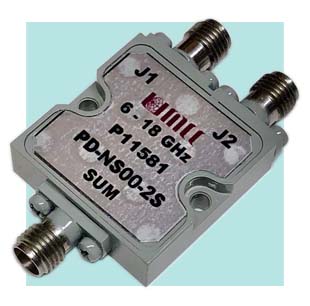

PD-NS00-2S Slimline Pkg. |
6 - 18 | 1.0 | 17 | 1.60 | 1.50 | -/+0.15 | -/+3.5deg | 1 W | 10 W | Fig.4 |
|
PD-N000-2S |
6 - 18 | 1.0 | 17 | 1.60 | 1.50 | -/+0.15 | -/+3.5deg | 1 W | 10 W | Fig.11 |
|
1) Loss due to division is 3.01 dB 2) Power at Sum Port |
||||||||||
|
Multi-Octave-Band 2-Way
Dividers 250 MHz - 18 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Min |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PS-JA00-2S |
0.25 - 2.05 | 0.9 | 24 | 1.25 | 1.25 | -/+0.1 | -/+0.5deg | 2 W | 20 W | Fig.1 |
|
PS-5000-2S |
0.45 - 5 | 0.6 | 20 | 1.30 | 1.30 | -/+0.1 | -/+1deg | 1 W | 10 W | Fig.5 |
|
PD-R000-2S |
1 - 12.4 | 0.8 | 18 | 1.45 | 1.35 | -/+0.1 | -/+2deg | 1 W | 10 W | Fig.8 |
|
PD-S000-2S |
2 - 18 | 1.3 | 18 | 1.55 | 1.50 | -/+0.2 | -/+2deg | 1 W | 10 W | Fig.8 |
|
1) Loss due to division is 3.01 dB 2) Power at Sum Port |
||||||||||
|
Resistive 2-Way Divider DC - 12 GHz |
||||||||||
| Model Number |
Freq. Range (GHz) |
Insertion
Loss (1) (dB) Max |
Isolation (dB) Nominal |
VSWR Max |
Amplitude Balance (dB) Max |
Phase Balance (deg) Max |
Power
(2) cw/avg Load VSWR |
Outline Drawing |
||
| SUM | OUTS | >> 2:1 | << 2:1 | |||||||
|
PD-Z000-2S |
DC - 12 | 1.0 | 6dB | 1.30 | 1.30 | -/+0.15 | -/+1.5deg | 0.5 W | 1 W | Fig.6 |
|
1) Loss due to division is 6.02 dB, 50% power is dissipated internally 2) Power at Sum Port |
||||||||||
| All Models: | |
 Impedance: |
50 Ω Nominal |
| Connectors: |
SMA(f) , ("unless otherwise specified") |
Environmental Ratings: |
||
| Temperature: |
||
| - Operating | -55 degC to +95 degC | |
| - Storage | -60 degC to +110 degC | |
| Humidity: |
Mil-STD-202F, Method 103B Condition B | |
| Shock: |
Mil-STD-202F, Method 213B Condition B | |
| Vibration: |
Mil-STD-202F, Method 204D Condition B | |
| Altitude: |
Mil-STD-202F, Method 105C Condition B | |
| Temp.
Cycle: |
Mil-STD-202F, Method 107D Condition B | |
|
|
|
|
 |
