| Narrow Band Variable Attenuators | |
|
|
|
|
Sales/Technical Contact Email: Sales@UMCC111.com |
| UMCC offers this selection of pin-diode variable attenuators in octave bands from 250 MHz to 18 GHz. Attenuators are equipped with a linearizer driver circuit for attenuation control setting. Control signal is via a voltage or a digital word. Attenuators are also available without a driver where control would be via a forward current. | |
|
RF Circuit |
Voltage Control Driver |
|
|
|
|
Digital Control Driver |
|
|
|
|
|
|
Common Specifications | |
|
|
Available Options | |
|
> Specifications are subject to change
without notice |
|
|

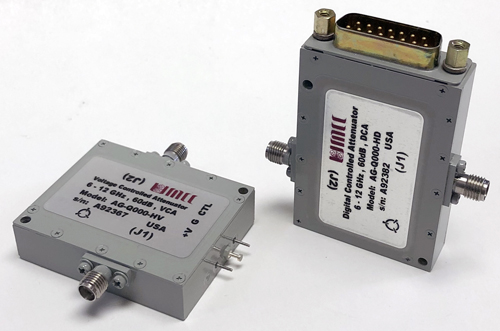

| Voltage Controlled Attenuator (VCA) / "AG-XXXX-HV" Models |
| Digital Controlled Attenuator (DCA) / "AG-XXXX-HD" Models |
| Current Controlled Attenuator (CCA) / "AT-XXXX-HC" Models |
Specifications for Standard Models (60 dB Dynamic Range Maximum)
| Model
No. |
Frequency (GHz) |
Insertion
Loss (dB) Max |
VSWR Max |
Power
Rating Operating (Cw/Pk) Survival (Cw/Avg) |
Settling Time (1) |
Attenuation Flatness (-/+ dB) | Supply | Outline Drawing |
||||
| 10dB | 20dB | 40dB | 50dB | 60dB | ||||||||
| AG-A000-HV | 0.25
- 0.5 |
1.9 | 1.5:1 | +10dbm
(O) +30dbm (S) |
1μs (10μs<PW<0.1s) |
0.3 | 0.8 | 1.5 | 1.5 | 1.6 |
+(12~15)V Single Supply |
-HV |
| AG-A000-HD | -HD | |||||||||||
| AT-A000-HC | N/A | -HC | ||||||||||
| AG-AB00-HV | 0.35
- 0.7 |
1.7 | 1.5:1 | +10dbm
(O) +30dbm (S) |
1μs (10μs<PW<0.1s) |
0.3 | 0.7 | 1.3 | 1.5 | 1.5 |
+(12~15)V Single Supply |
-HV |
| AG-AB00-HD | -HD | |||||||||||
| AT-AB00-HC | N/A | -HC | ||||||||||
| AG-B000-HV | 0.5 - 1 | 1.7 | 1.4:1 | +12dbm
(O) +30dbm (S) |
750
ns (10μs<PW<0.1s) |
0.3 | 0.8 | 1.4 | 1.5 | 1.6 |
+(12~15)V Single Supply |
-HV |
| AG-B000-HD | -HD | |||||||||||
| AT-B000-HC | N/A | -HC | ||||||||||
| AG-C000-HV | 1
- 2 |
1.7 | 1.45:1 | +14dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.3 | 0.8 | 1.4 | 1.5 | 1.7 |
+(12~15)V Single Supply |
-HV |
| AG-C000-HD | -HD | |||||||||||
| AT-C000-HC | N/A | -HC | ||||||||||
| AG-CD00-HV | 1.5
- 3 |
1.7 | 1.45:1 | +17dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.3 | 0.8 | 1.4 | 1.5 | 1.8 |
+(12~15)V Single Supply |
-HV |
| AG-CD00-HD | -HD | |||||||||||
| AT-CD00-HC | N/A | -HC | ||||||||||
| AG-D000-HV | 2
- 4 |
1.7 | 1.45:1 | +20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.3 | 0.8 | 1.4 | 1.5 | 1.7 |
+(12~15)V Single Supply |
-HV |
| AG-D000-HD | -HD | |||||||||||
| AT-D000-HC | N/A | -HC | ||||||||||
| AG-H000-HV | 3
- 6 |
1.8 | 1.45:1 | +20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.3 | 0.8 | 1.3 | 1.5 | 1.8 |
+(12~15)V Single Supply |
-HV |
| AG-H000-HD | -HD | |||||||||||
| AT-H000-HC | N/A | -HC | ||||||||||
| AG-E000-HV | 4
- 8 |
2.2 | 1.45:1 | +20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.3 | 0.8 | 1.4 | 1.6 | 1.8 |
+(12~15)V Single Supply |
-HV |
| AG-E000-HD | -HD | |||||||||||
| AT-E000-HC | N/A | -HC | ||||||||||
| AG-Y000-HV | 5
- 10 |
2.4 | 1.5:1 | +20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.4 | 1.0 | 1.8 | 1.95 | 2.1 |
+(12~15)V Single Supply |
-HV |
| AG-Y000-HD | -HD | |||||||||||
| AT-Y000-HC | N/A | -HC | ||||||||||
| AG-Q000-HV | 6
- 12 |
2.5 | 1.5:1 | +20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.4 | 0.9 | 1.6 | 1.8 | 1.8 |
+(12~15)V Single Supply |
-HV |
| AG-Q000-HD | -HD | |||||||||||
| AT-Q000-HC | N/A | -HC | ||||||||||
| AG-N000-HV |
8
- 18 |
3.3 | 2:1 |
+20dbm
(O) +30dbm (S) |
500
ns (5μs<PW<0.1s) |
0.8 | 1.0 | 1.6 | 1.7 | 1.8 |
+(12~15)V Single Supply |
-HV |
| AG-N000-HD | -HD | |||||||||||
| AT-N000-HC | N/A | -HC | ||||||||||
|
1) "settling time" is defined as the time attenuation level transits from one attenuation level to within -/+1dB of another attenuation level |
||||||||||||
| All Standard Models: | |||
| 50 Ω Nominal | |||
| 60 dB Nominal | |||
| - Voltage Controlled Units (AG-XXXX-HV series) | 0V
to +6V,
Slope = 10dB/Volt, Impedance= 2.5K Ohms (0V = 0dB Attenuation (Reference)) |
||
| - Digital Controlled Units (AG-XXXX-HD series) | 8
Bit Positive Binary TTL ( LSB=0.25dB, MSB=32dB), Impedance= 5~10K Ohms |
||
| - Current Controlled Units (AT-XXXX-HC series) | 0 - 10 mA Forward Current (approx.) | ||
| 0 - 0.8 dB | -/+ 50% Max | ||
| > 0.8 - 10 dB | -/+ 0.40 dB Max | ||
| > 10 - 30 dB | -/+ 0.50 dB Max | ||
| > 30 - 50 dB | -/+ 0.90 dB Max | ||
| > 50 - 60 dB | -/+ 1.20 dB Max | ||
| - RF Input / Output | SMA (female), Removable | ||
| - Supply and Control (AG-XXXX-HV series) | Solder Pins | ||
| - Supply and Control (AG-XXXX-HD series) | 15-Pin D-Type Subminiature Male | ||
| -/+ 0.025dB / degC (Over -20 degC to +75 degC) | |||
| Environmental Ratings: | ||
| - Operating | -40 degC to +85 degC | |
| - Storage | -50 degC to +100 degC | |
| Mil-STD-202F, Method 103B Condition B | ||
| Mil-STD-202F, Method 213B Condition B | ||
| Mil-STD-202F, Method 204D Condition B | ||
| Mil-STD-202F, Method 105C Condition B | ||
| Mil-STD-202F, Method 107D Condition B | ||
| Available Options: | ||||
|
1) Units with options
listed here may be subject to some specification
tradeoffs from the standard, consult factory 2) Some options may not be available on all models, consult factory |
||||
| B1 [ J1 SMA (male) ] | F1 [ Slope = 5dB/Volt ] / (AG-XXXX-HV series) | |||
| B2 [ All SMA (male) ] | F3 [ Reverse Control Voltage (0V = Max Attenuation)] / (AG-XXXX-HV series) | |||
| F3 [ Inverse Logic ("00.....00" = Max Attenuation)] / (AG-XXXX-HD series) | ||||
| C1 [ SMC (Jack), 50 Ω ] |
![]() |
|||
| G1 [ 31.875 dB Attenuation Range / 8-Bits (LSB= 1/8 dB) <> fractional steps] | ||||
| C2 [ SMB (Jack), 50 Ω ] |
![]() |
G2 [ 25.5 dB Attenuation Range / 8-Bits (LSB= 0.1 dB) <> decimal steps] | ||
| C3 [ SMA (female) ] | ||||
| G1 [ 30dB Range / Slope = 5dB / Volt ] | ||||
| E1 [ LSB = 1/8 dB <> 9-Bits <> "fractional steps" ] |
|
|||
| R1 [ LSB = 0.1 dB <> 10-Bits <> "decimal steps" ] | ||||
| E2 [ LSB = 1/16 dB <> 10-Bits <> "fractional steps" ] | ||||
| R2 [ LSB = 0.05 dB <> 11-Bits <> "decimal steps" ] | ||||
| E3 [ LSB = 1/32 dB <> 11-Bits <> "fractional steps" ] | ||||
| E4 [ LSB = 1/64 dB <> 12-Bits <> "fractional steps" ] | ||||
