Pin Diode SP7T Switches / Phase Matched Frequencies from 100MHz to 20GHz All with High Speed TTL Driver Available with variety of options Small Compact Packages "Specifications are subject to change without notice"

Broadband SP7T Switches (Reflective / Absorptive)
Frequencies from 500MHz to 12.4GHz

Model No.	Frequency (GHz)	Insertion Loss (dB) Max	Isolation (dB) Min	VSWR Max	Rise/Fall Time Max	On/Off Time Max	Power Handling, Max		Supply Voltage	Outline Drawing
							cw/avg	peak
2 - 12.4 GHz
SW-L030-7S (Reflective)	2 - 4	2.4	60	1.7:1	15 ns	45 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.4	55
	8 - 12.4	2.6	50

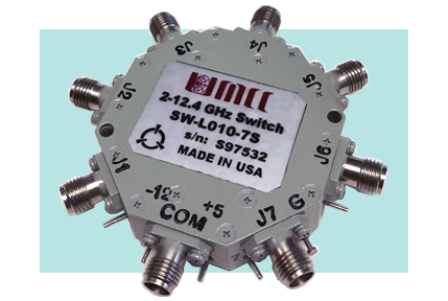

SW-L010-7S (Absorptive)	2 - 4	2.4	65	1.7:1	15 ns	45 ns	+24dbm (+27dbm @  Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.4	60
	8 - 12.4	2.6	53
1 - 12.4 GHz
SW-K030-7S (Reflective)	1 - 4	2.5	60	1.7:1	15 ns	50 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.6	55
	8 - 12.4	2.8	50
SW-K010-7S (Absorptive)	1 - 4	2.5	65	1.7:1	15 ns	50 ns	+24dbm (+27dbm @  Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.6	60
	8 - 12.4	2.8	53
0.5 - 12.4 GHz
SW-J030-7S (Reflective)	0.5 - 4	2.5	60	1.8:1	20 ns	50 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.7	55
	8 - 12.4	2.9	50
SW-J010-7S (Absorptive)	0.5 - 4	2.5	65	1.8:1	20 ns	50 ns	+24dbm (+27dbm @  Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.7	60
	8 - 12.4	2.9	53

Broadband SP7T Switches (Reflective / Absorptive)
Frequencies from 100MHz to 20GHz

Model No.	Frequency (GHz)	Insertion Loss (dB) Max	Isolation (dB) Min	VSWR Max	Rise/Fall Time Max	On/Off Time Max	Power Handling, Max		Supply Voltage	Outline Drawing
							cw/avg	peak
2 - 18 GHz
SW-S040-7S (Reflective) Economy Class	2 - 4	2.6	75	2:1	15 ns	45 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.8	70
	8 - 12.4	2.9	60
	12.4 - 18	3.4	55
SW-S000-7S (Reflective) High Isolation	2 - 8	2.2	80	2:1	10 ns	45 ns	+30dbm	10W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	8 - 12.4	2.9	75
	12.4 - 18	3.8	70
SW-S010-7S (Absorptive) Economy Class	2 - 4	2.6	80	2:1	15 ns	45 ns	+24dbm (+27dbm @ Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.8	75
	8 - 12.4	2.9	65
	12.4 - 18	3.4	60
SW-S070-7S (Absorptive) High Isolation	2 - 4	2.5	80	2:1	15 ns	45 ns	+24dbm (+27dbm @ Com Port)	5W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 12.4	3.1	80
	12.4 - 18	4.0	75
1 - 18 GHz
SW-T040-7S (Reflective) Economy Class	1 - 4	2.6	75	2:1	15 ns	50 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.8	70
	8 - 12.4	3.0	60
	12.4 - 18	3.6	55
SW-T000-7S (Reflective) High Isolation	1 - 2	2.3	75	2:1	10 ns	50 ns	+30dbm	10W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	2 - 8	2.6	80
	8 - 12.4	3.4	75
	12.4 - 18	4.2	70
SW-T010-7S (Absorptive) Economy Class	1 - 4	2.6	80	2:1	15 ns	50 ns	+24dbm (+27dbm @ Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.8	75
	8 - 12.4	3.0	65
	12.4 - 18	3.6	60
SW-T070-7S (Absorptive) High Isolation	1 - 4	2.8	80	2:1	15 ns	50 ns	+24dbm (+27dbm @ Com Port)	5W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 12.4	3.5	80
	12.4 - 18	4.2	75
0.5 - 18 GHz
SW-U040-7S (Reflective) Economy Class	0.5 - 4	2.7	75	2:1	20 ns	50 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	3.0	70
	8 - 12.4	3.3	60
	12.4 - 18	3.9	55
SW-U000-7S (Reflective) High Isolation	0.5 - 2	2.5	75	2:1	15 ns	50 ns	+30dbm	10W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	2 - 8	2.7	80
	8 - 12.4	3.6	75
	12.4 - 18	4.4	70
SW-U010-7S (Absorptive) Economy Class	0.5 - 4	2.7	80	2:1	20 ns	50 ns	+24dbm (+27dbm @ Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	3.0	75
	8 - 12.4	3.3	65
	12.4 - 18	3.9	60
SW-U070-7S (Absorptive) High Isolation	0.5 - 4	2.8	80	2:1	15 ns	50 ns	+24dbm (+27dbm @ Com Port)	5W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 12.4	3.8	80
	12.4 - 18	4.8	75
0.1 - 18 GHz
SW-V040-7S (Reflective) Economy Class	0.1 - 0.5	3.5	75	2:1	35 ns	120 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	0.5 - 4	2.8	75
	4 - 8	3.1	70
	8 - 12.4	3.6	60
	12.4 - 18	4.1	55
SW-V000-7S (Reflective) High Isolation	0.1 - 0.5	3.4	75	2:1	25 ns	120 ns	+30dbm	10W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	0.5 - 2	2.6	80
	2 - 8	2.8	80
	8 - 12.4	3.9	75
	12.4 - 18	4.7	70
SW-V010-7S (Absorptive) Economy Class	0.1 - 0.5	3.5	80	2:1	35 ns	120 ns	+24dbm (+27dbm @ Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	0.5 - 4	2.8	80
	4 - 8	3.1	75
	8 - 12.4	3.6	65
	12.4 - 18	4.1	60
SW-V070-7S (Absorptive) High Isolation	0.1 - 4	3.0	75	2.1:1	25 ns	120 ns	+24dbm (+27dbm @ Com Port)	5W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 12.4	3.9	80
	12.4 - 16	4.4	80
	16 - 18	5.0	75
2 - 20 GHz
SW-P040-7S (Reflective) Economy Class	2 - 4	2.6	75	2:1	15 ns	45 ns	+27dbm	8W (1µS,PW)	+5(±0.25)V / 80mA -12(±0.5)V / 90mA	Fig.3
	4 - 8	2.8	70
	8 - 12.4	2.9	60
	12.4 - 18	3.4	55
	18 - 20	3.8	50
SW-P010-7S (Absorptive)	2 - 4	2.6	80	2:1	15 ns	45 ns	+24dbm (+27dbm @ Com Port)	8W (1µS,PW)	+5(±0.25)V / 240mA -12(±0.5)V / 90mA
	4 - 8	2.8	75
	8 - 12.4	2.9	65
	12.4 - 18	3.4	60
	18 - 20	3.8	55

All Models:
Impedance:		50 Ω
Control Input Characteristic:		Standard TTL, One Unit Load
Control Logic:		7 Controls (Logic "0" for RF Path "ON")
Connectors:
	- RF Input / Output
	- Supply	Solder Pins
	- Control	Solder Pins

Environmental Ratings:
Temperature:
	- Operating	-55°C to +95°C
	- Storage	-60°C to +110°C
Humidity:		Mil-STD-202F, Method 103B Condition B
Shock:		Mil-STD-202F, Method 213B Condition B
Vibration:		Mil-STD-202F, Method 204D Condition B
Altitude:		Mil-STD-202F, Method 105C Condition B
Temp. Cycle:		Mil-STD-202F, Method 107D Condition B

Available Options: 1) units with combination of the following options may require some specification tradeoffs from the standard 2) Some options may not be available on all models
Supply Voltages		Control Function
	A1)  +5(±0.25)V / -5(±0.25)V		F1) Inverted Logic, ("1" = Path "ON")
	A2)  +5(±0.25)V / -15(±0.5)V
	A3)  +12(±0.5)V / -12(±0.5)V
	A4)  +15(±0.5)V / -15(±0.5)V	Video Suppression Filters
			G1) VF @ Common Port <> 0.25dB additional Loss
RF Connectors			G2) VF @ J1 -  J7 Ports <> 0.25dB additional Loss
	B1) J1 - J7 SMA(M)		G3) VF @ All Ports <> 0.5dB additional Loss
	B2) All SMA(M)
	B3) Common SMA(M)
